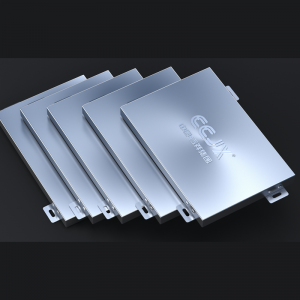

Product Overview:
As a new type of exterior wall decoration material, metal aluminum veneer has many excellent characteristics: rich color, can meet the color requirements of modern buildings, the surface coating uses PVDF fluorocarbon coating, good color stability, and no fading; Excellent weather resistance and aging resistance, long-term UV resistance, resistance to wind, industrial waste gas and other erosion; Resistant to acid rain, salt spray, and various pollutants in the air. Excellent heat and cold resistance, able to resist strong ultraviolet radiation. Can maintain long-term color fastness, non powdering, and long service life. In addition, fluorocarbon coatings are difficult to adhere to pollutants on the surface, can maintain a smooth finish for a long time, and are easy to clean and maintain. Light weight, high strength, and strong wind resistance. The installation structure is simple and can be designed into various complex shapes, such as curved, multi fold, and strong decorative effects.
| Product Material | 5005H24, 3003H24, 1100H24 |
| Thickness: Conventional: | 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm |
| Specification | Regular: 600mm * 600mm, 600mm * 1200mm |
| Styling | flat, triangular, trapezoidal, curved, square, linear, laminated, relief, etc |
| Surface treatment | powder, polyester, fluorocarbon, wire drawing, anodizing, roller coating, heat transfer printing, imitation copper, etc. |
Surface treatment:
Sheet metal cutting, automated edge bending, and eco-friendly painting.
Aluminum panel coating:
After undergoing treatments such as chrome-free passivation, aluminum panels are processed into architectural decorative materials through fluorocarbon spray coating technology. Fluorocarbon coatings primarily consist of polyvinylidene fluoride resin, categorized into primer, topcoat, and clearcoat. The spray coating process typically involves two, three, or four layers of application.
Product Advantages:
High stability, bright color, strong metallic luster, wear-resistant and scratch-resistant. With stable product characteristics, it offers excellent environmental protection and fire-resistant properties, along with good shock resistance and windproof capabilities.
Product Features:
Instruction 1:
Lightweight, high rigidity, and high strength. The 3.0mm thick aluminum plate weighs 8KG per square meter, with a tensile strength of 100-280N/mm²
Excellent durability and corrosion resistance. PVDF fluorocarbon paint, based on Kynar-500 and hylur500, maintains its color for up to 25 years without fading.
Excellent workability. The process involves initial machining followed by thick paint spraying, allowing aluminum plates to be shaped into various complex geometric forms such as flat, curved, and spherical surfaces.
The coating is uniform and offers a wide range of colors. Advanced electrostatic spraying technology ensures even and consistent adhesion of paint to aluminum panels, providing diverse color options and ample selection.
Resistant to stains and easy to clean and maintain. The non-adhesive properties of the fluorinated coating film make it difficult for contaminants to adhere to the surface, ensuring excellent cleanliness.
Installation and construction are convenient and efficient. The aluminum panels are pre-formed in the factory, eliminating the need for cutting at the construction site, and can be directly fixed onto the framework.
Recyclable and reusable, it is environmentally friendly. Aluminum panels can be 100% recycled, unlike decorative materials such as glass, stone, ceramics, and aluminum-plastic panels, which have high residual value upon recycling.
Instruction 2:
Custom Shapes for Personalized Beauty: Tailored to client needs, we offer various forms such as bending, punching, and rolling, providing a wide range of irregular, curved, spherical, multi-angled, and perforated designs to fully align with design concepts.
Excellent weather resistance and self-cleaning performance: The fluorocarbon base materials Kynar 500 and Hylar 5000, with a content of 70%, effectively resist acid rain, air pollution, and UV damage. The unique molecular structure prevents dust from adhering to the surface, ensuring superior self-cleaning properties.
Excellent fire resistance and compliance with fire safety requirements: The aluminum panel cladding is made of high-strength aluminum alloy with fluorocarbon (PVDF) paint or stone panels, which are non-combustible materials.
Easy Installation and Simple Construction: Aluminum panels are easy to transport, and their superior workability allows for simple installation and various processing tasks with minimal tools. They can also be adapted to create diverse designs, offering straightforward and quick installation while reducing construction costs.
Product Structure:
Aluminum composite panels primarily consist of a surface-coated panel, reinforcing ribs, corner brackets, and other accessories. Bolts are embedded and welded on the back of the panel, connecting the reinforcing ribs to the panel through these bolts to form a robust structure. The reinforcing ribs enhance the flatness of the panel surface and improve the aluminum composite panel's resistance to wind pressure during long-term use.
Product Application:
Aluminum single plate curtain walls are widely used in building curtain walls, suspended ceilings, and indoor and outdoor decoration. They are particularly suitable for decorative purposes such as overpass corridors, pedestrian bridges, elevator edge cladding, advertising signs, and curved indoor ceilings. Additionally, they are ideal for large open public spaces such as major transportation hubs, hospitals, large shopping malls, exhibition centers, opera houses, and Olympic sports centers
